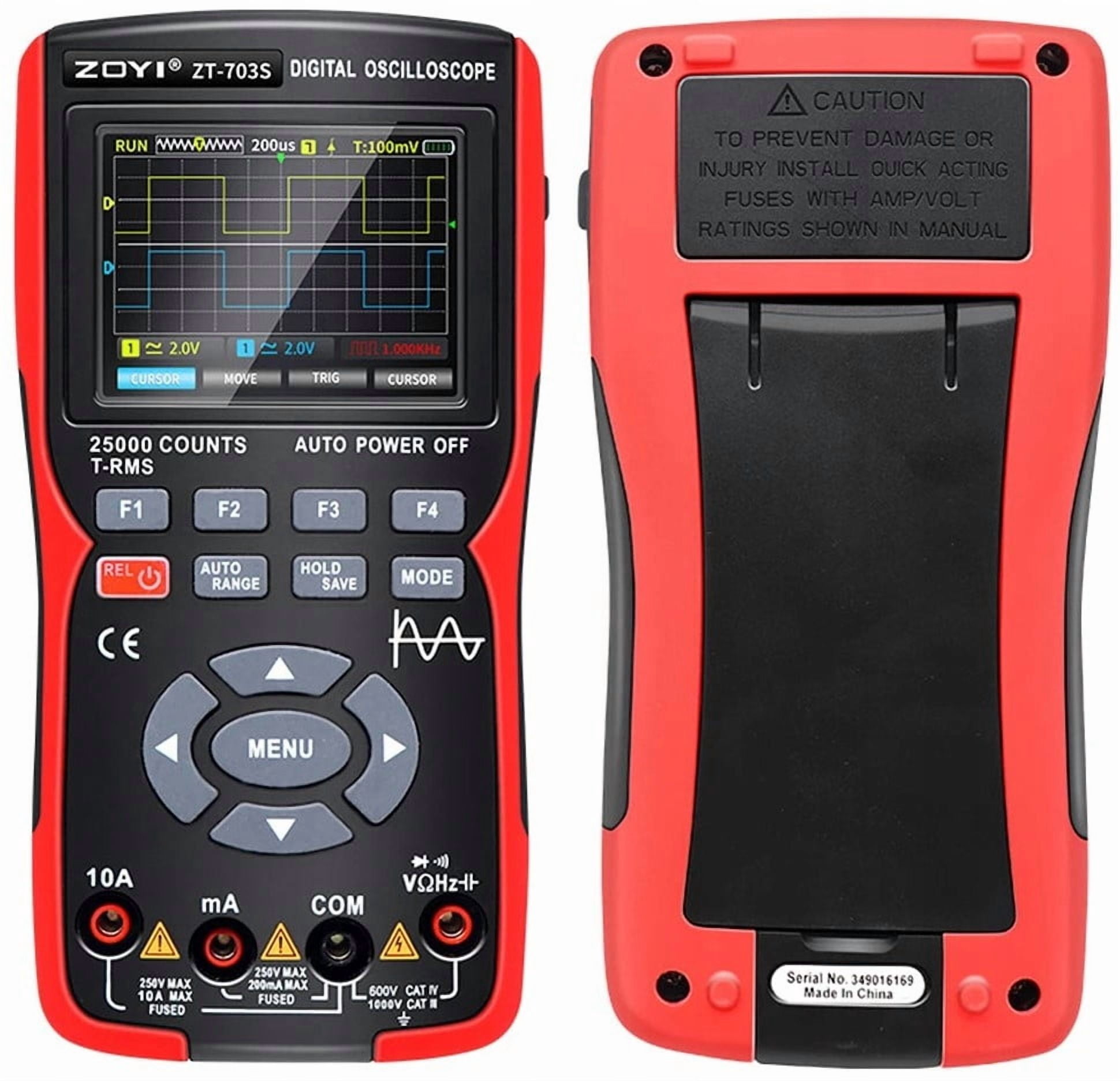

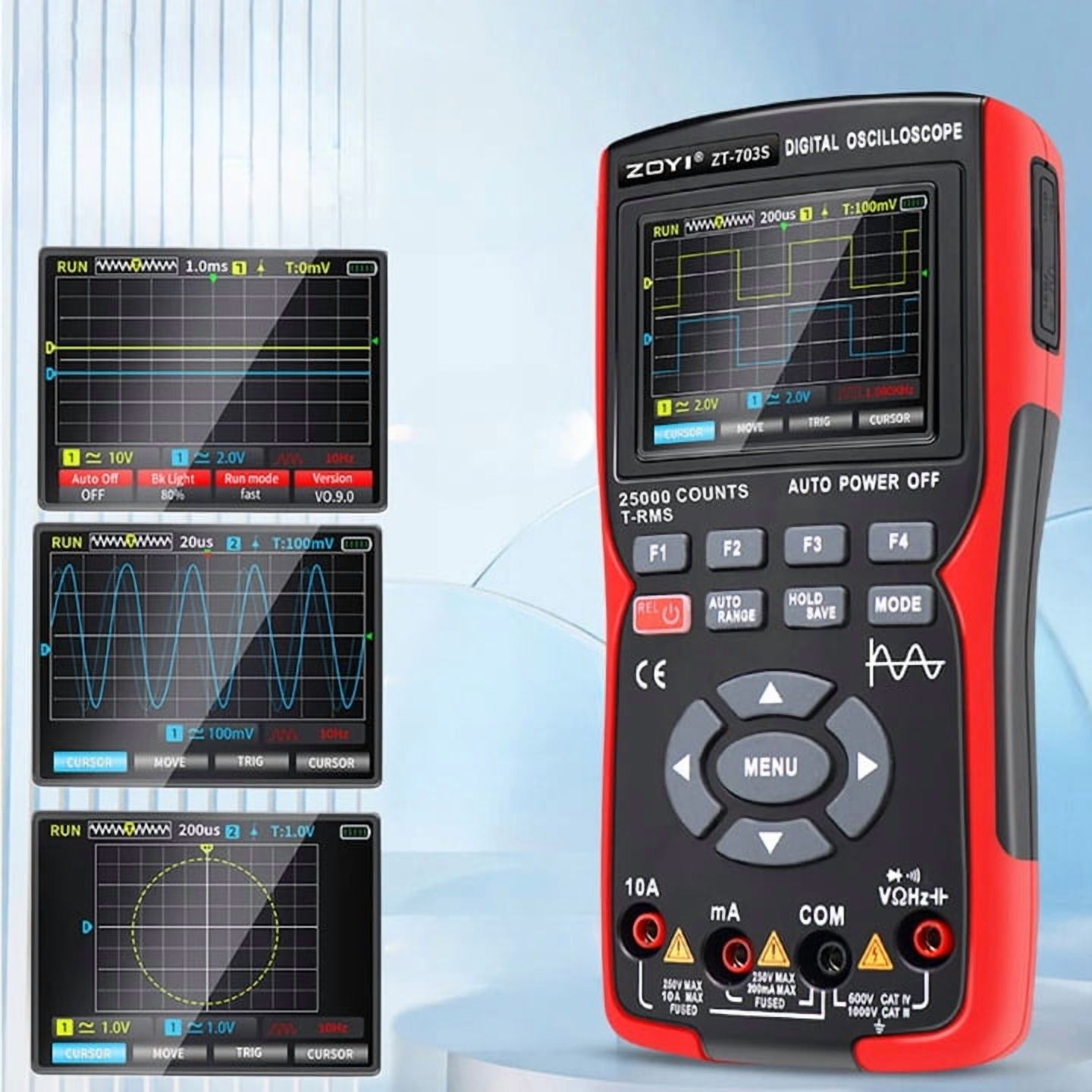

ZT703S Oscilloscope Multimeter High Precision Dual Channel 50MHZ Digital Oscilloscope Signal Source Auto Repair

ZT703S Oscilloscope Multimeter High Precision Dual Channel 50MHZ Digital Oscilloscope Signal Source Auto Repair

• ZOYI ZT-703S Three-in-One Digital Multimeter

  ZT-703S combines three main functions:

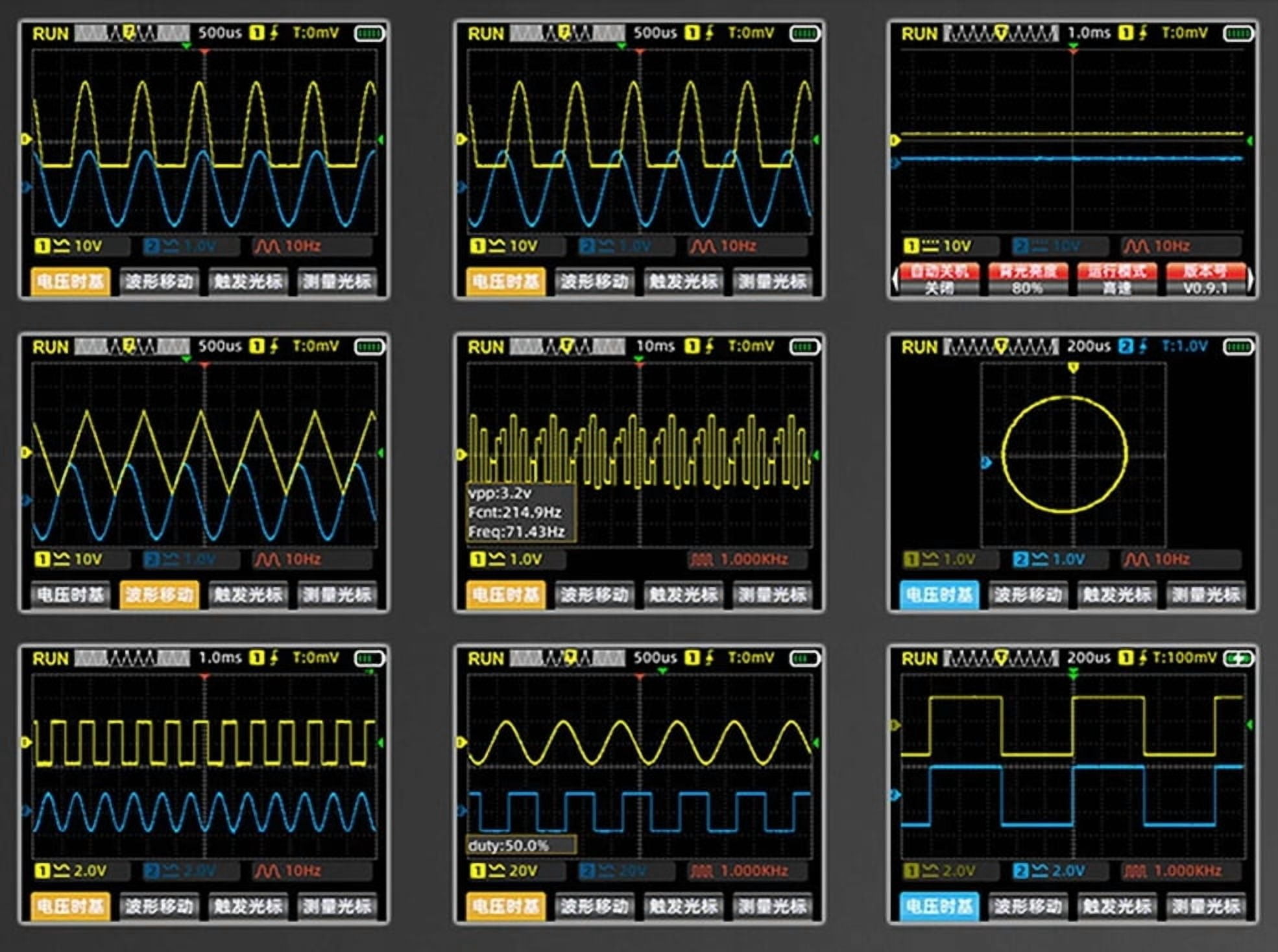

  digital oscilloscope

  signal generator

  Digital multimeter

  In addition, it cleverly integrates functions such as testing AC/DC voltage, AC/DC current, capacitance, resistance, frequency, etc., and has a true RMS function.

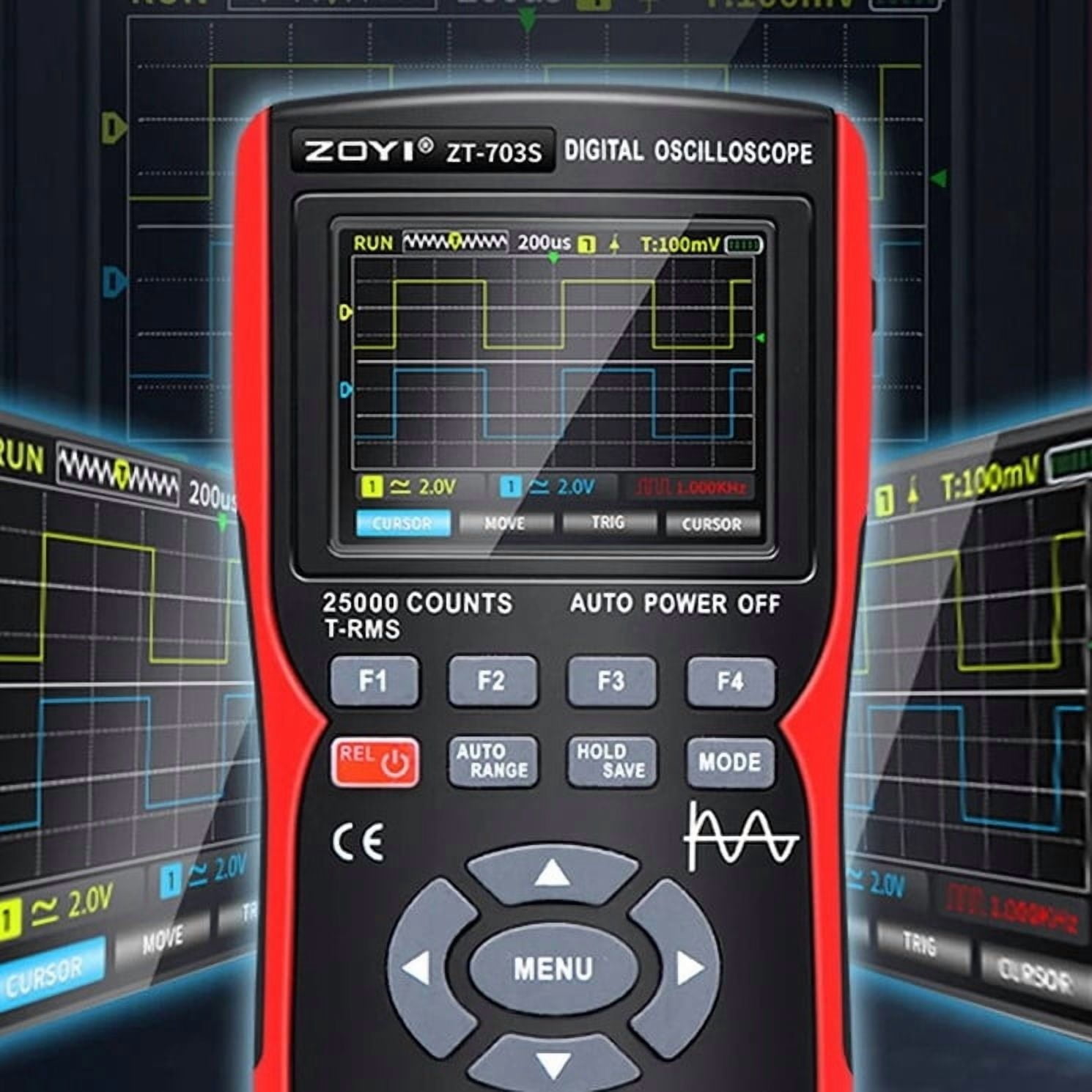

  The instrument panel is equipped with a 3.5-inch color display with a resolution of 320x240.

  ZT-703S has a built-in 3400mAh battery, providing users with efficient work, mobility and better functionality.

  This device is perfect for testing electrical instruments in homes, cars and circuit systems, as well as digital multimeters for measuring and detecting sockets, switches, lights and low-voltage circuits.

• Product Key Features:

  Three-in-one device: digital oscilloscope, signal generator and multimeter combined

  3.5-inch display - easy to control devices and easy to read measurement results

  Operation mode: automatic, manual

  Powered by 18650 3400mAh battery

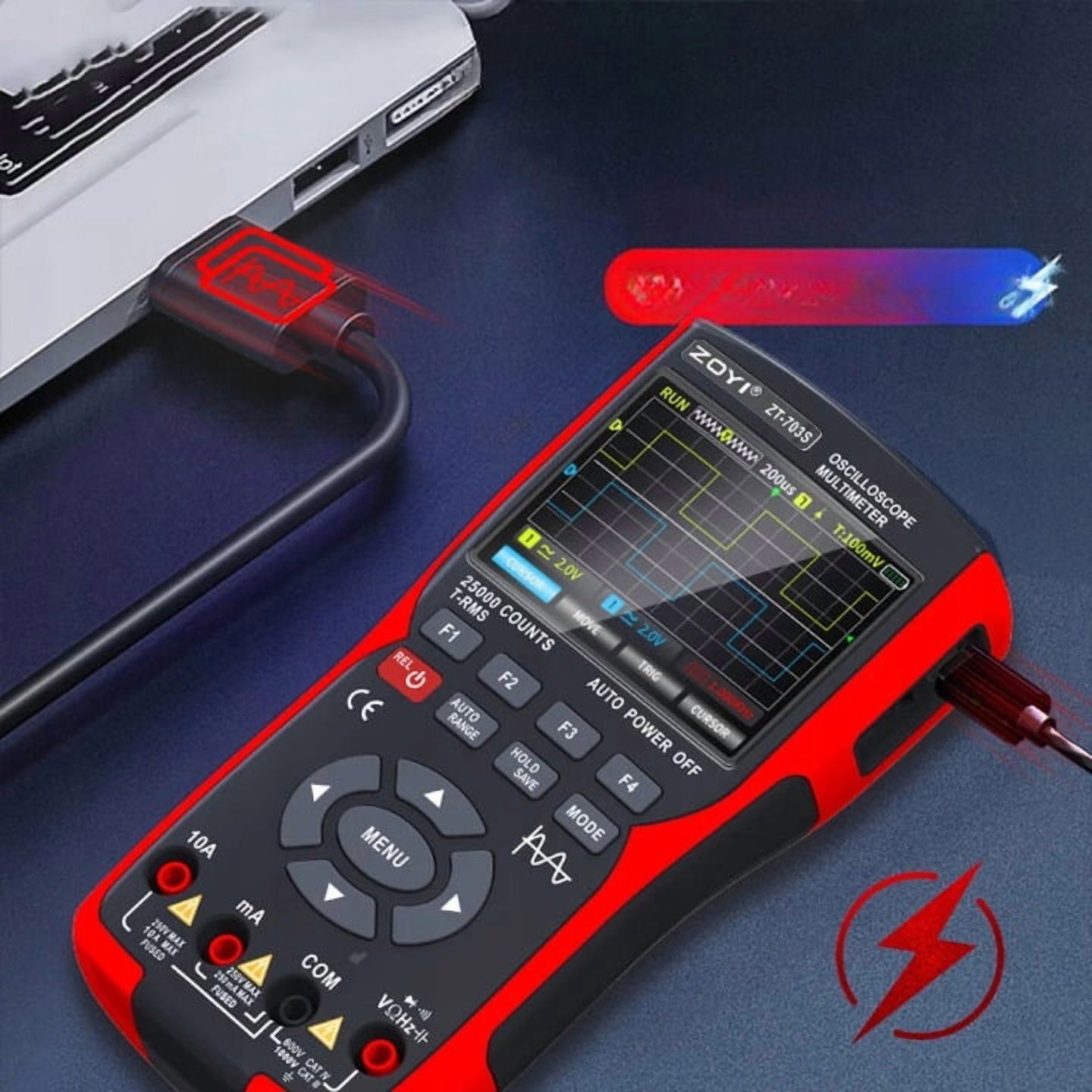

  Charging via USB-C cable

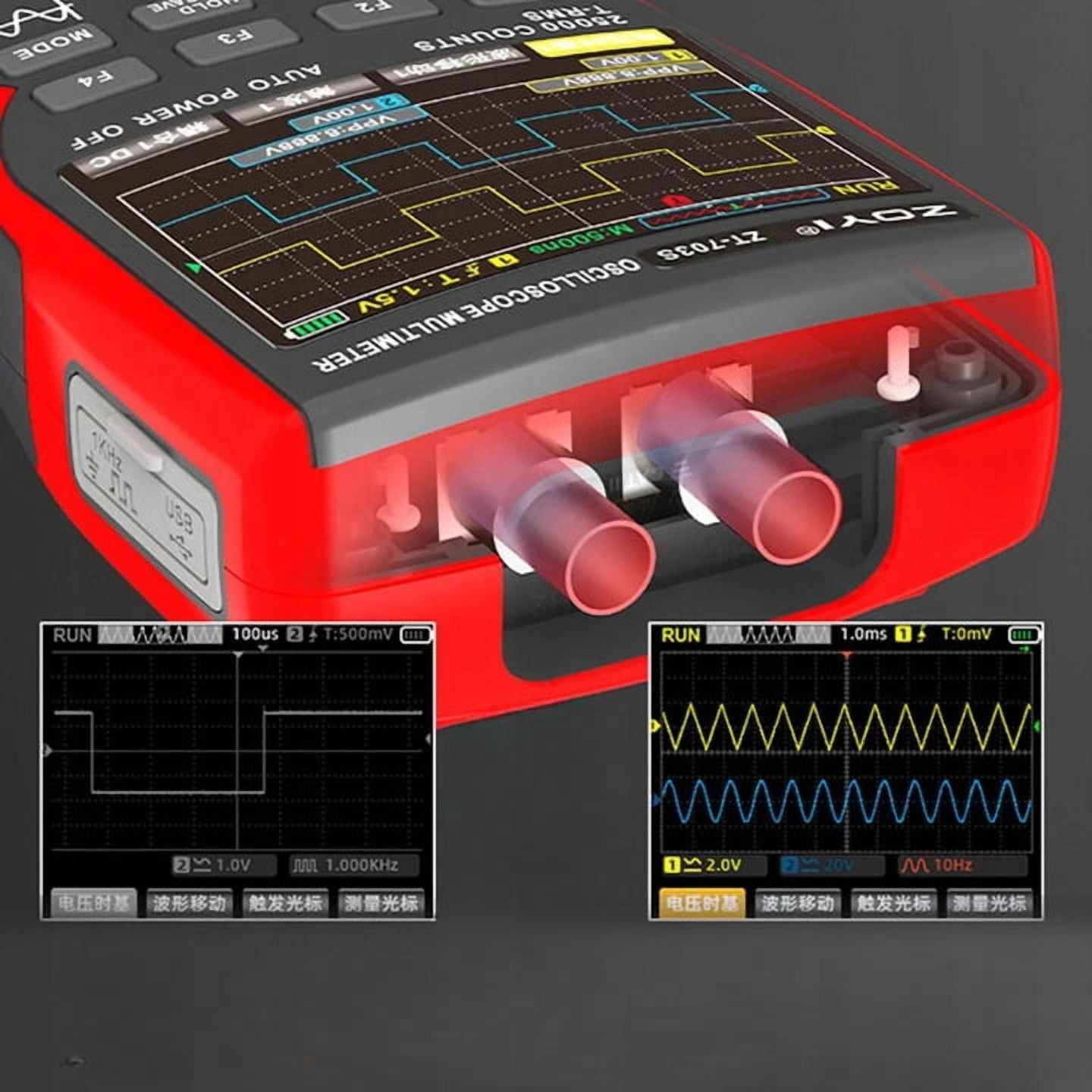

  Dual channel

  Sampling rate: 3 times per second

  True RMS function

  Backlight

  Buzzer

  Low battery indicator

  Screen backlight

  Data storage function

  Made of durable ABS material

  Widely used in electronic products

• Many measurement functions

  The ZOYI ZT-703S multimeter is equipped with many functions, making it an extremely useful device in diagnostic work.

  Equipment functions:

  1. Direct voltage measurement (DC)

  2. AC voltage measurement (AC)

  3. Alternating current measurement

  4. Direct current measurement

  5. Resistance

  6. Capacitance

  7. Frequency

• Manufacturer: ZOYI

  Model: ZT-703S

  Number of channels: 2

  Sampling rate: 3 times/second

  DC current: 25,000 m-250.00 mA; 2.5000A-10.000A ± (0.8%+3)

  AC current: 25.000mA-250.00mA; 2.5000A-10.000A ± (0.5%+3)

  DC voltage: 25.000mV-250.00mV; 2.5000 V-1000.0 V ± (0.5%+3)

  AC voltage: 25.000mV-250.00mV; 2.5000V-750.0V ±(0.5%+3)

  AC Frequency: 40Hz-1kHz

  Capacitance Measurement Range: 0-99 99mF, ±(2.0%+5)

  Resistance Measurement Range: 0-250.0μΩ, ±(1%+3)

  Frequency Range: 0-999.9kHz, ±(0.1%+3)

  Capacitance: 50MHz

  Operation Mode: Normal Mode (200MSA/s), High Speed ​​Mode (280MSA/s)

  Trigger Method: Automatic, Normal, Single Measurement

  Power Supply: Built-in 18650 3400mAh Battery

  Display Screen: 3.5 inch Color

  Screen Resolution: 320x240

  Material: ABS + TPE

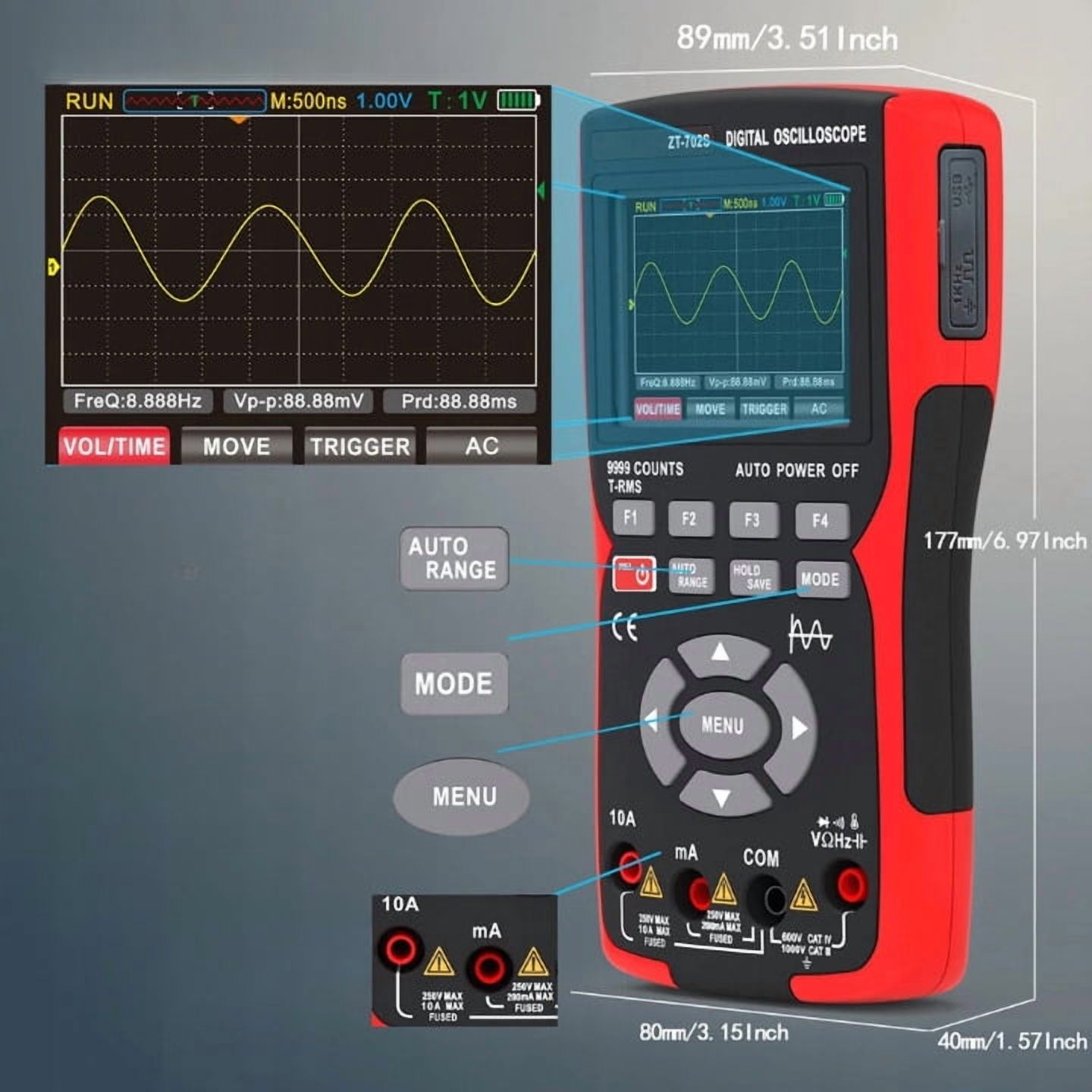

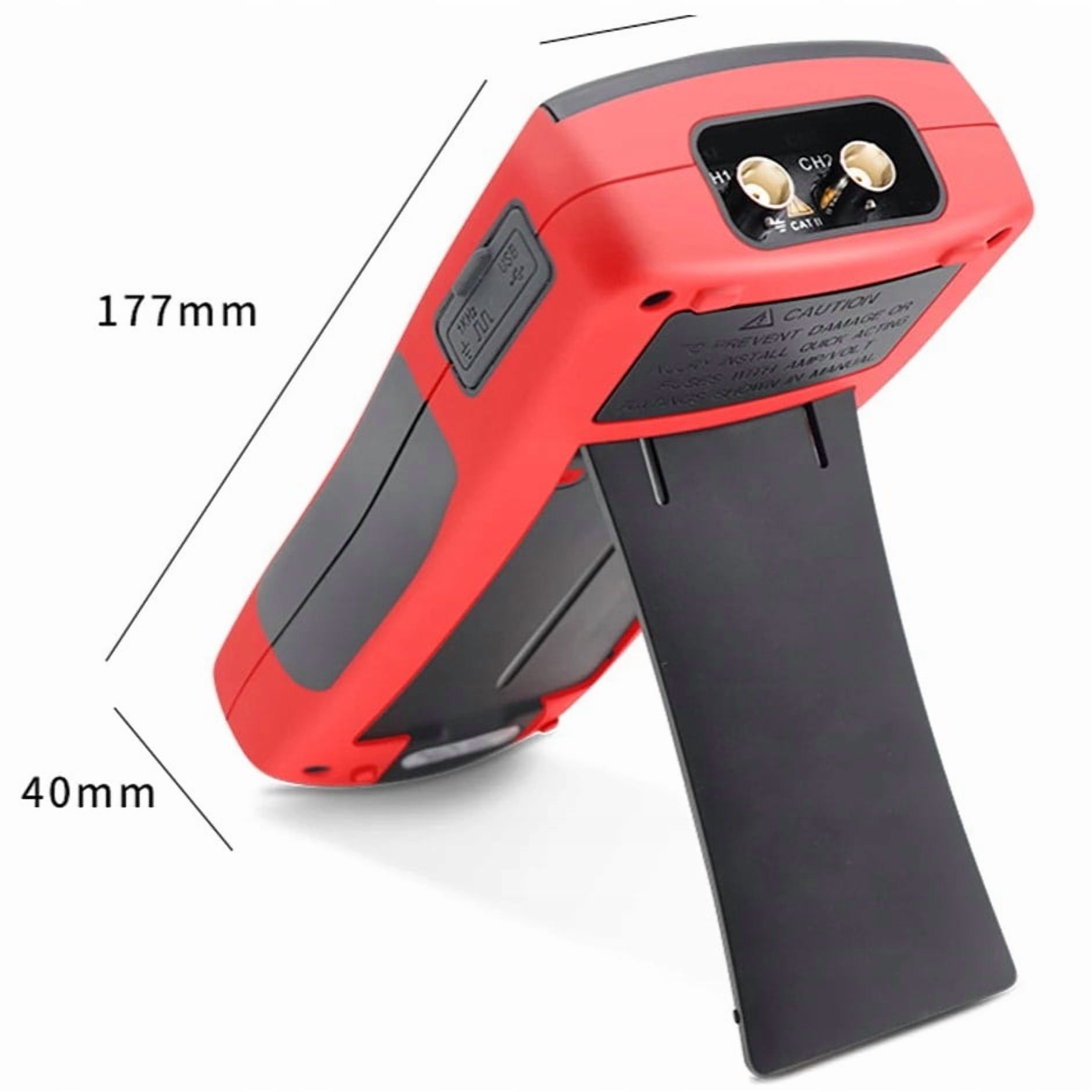

  Dimensions: 17.7 x 8.9 x 4 (centimeters)

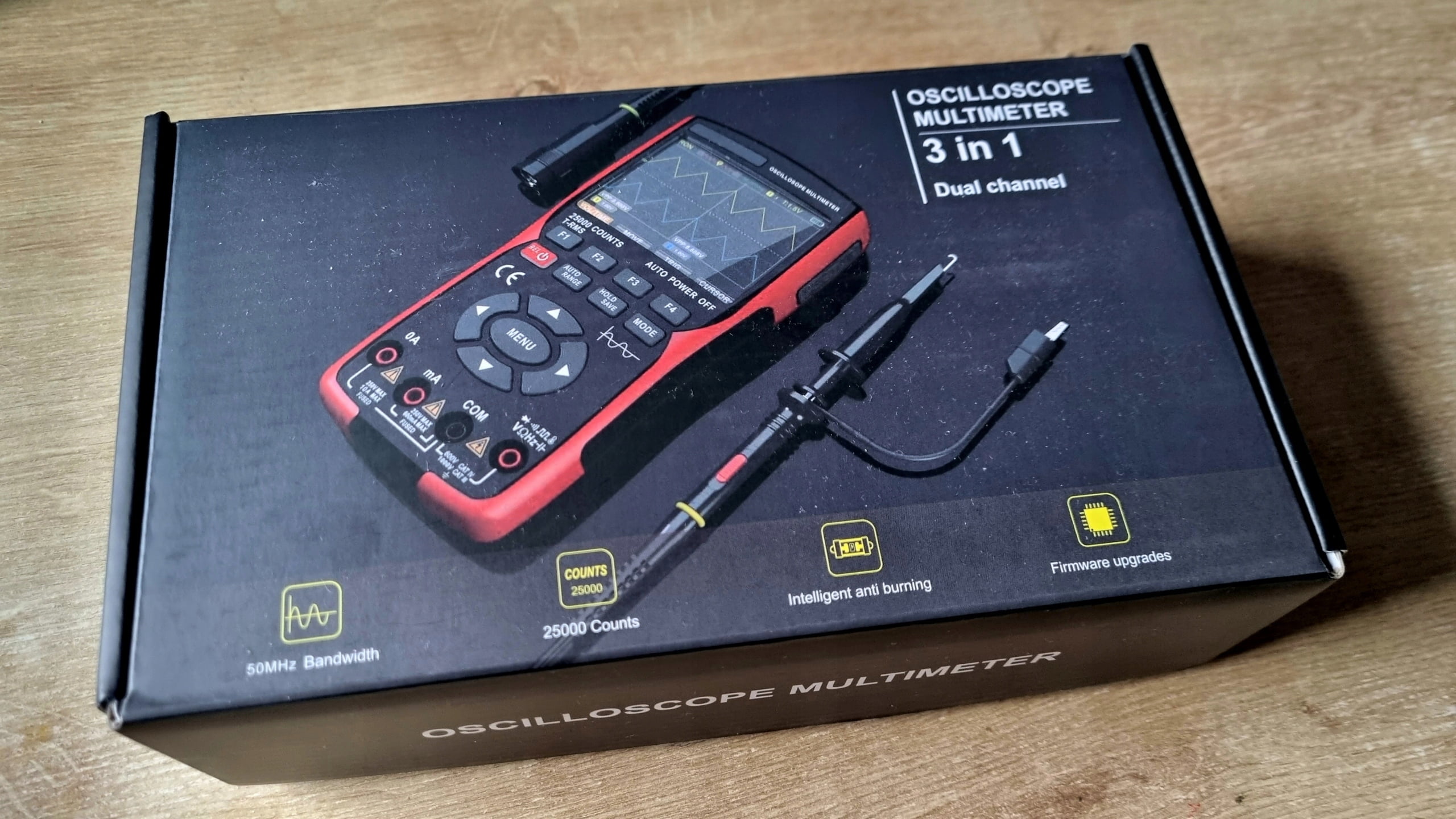

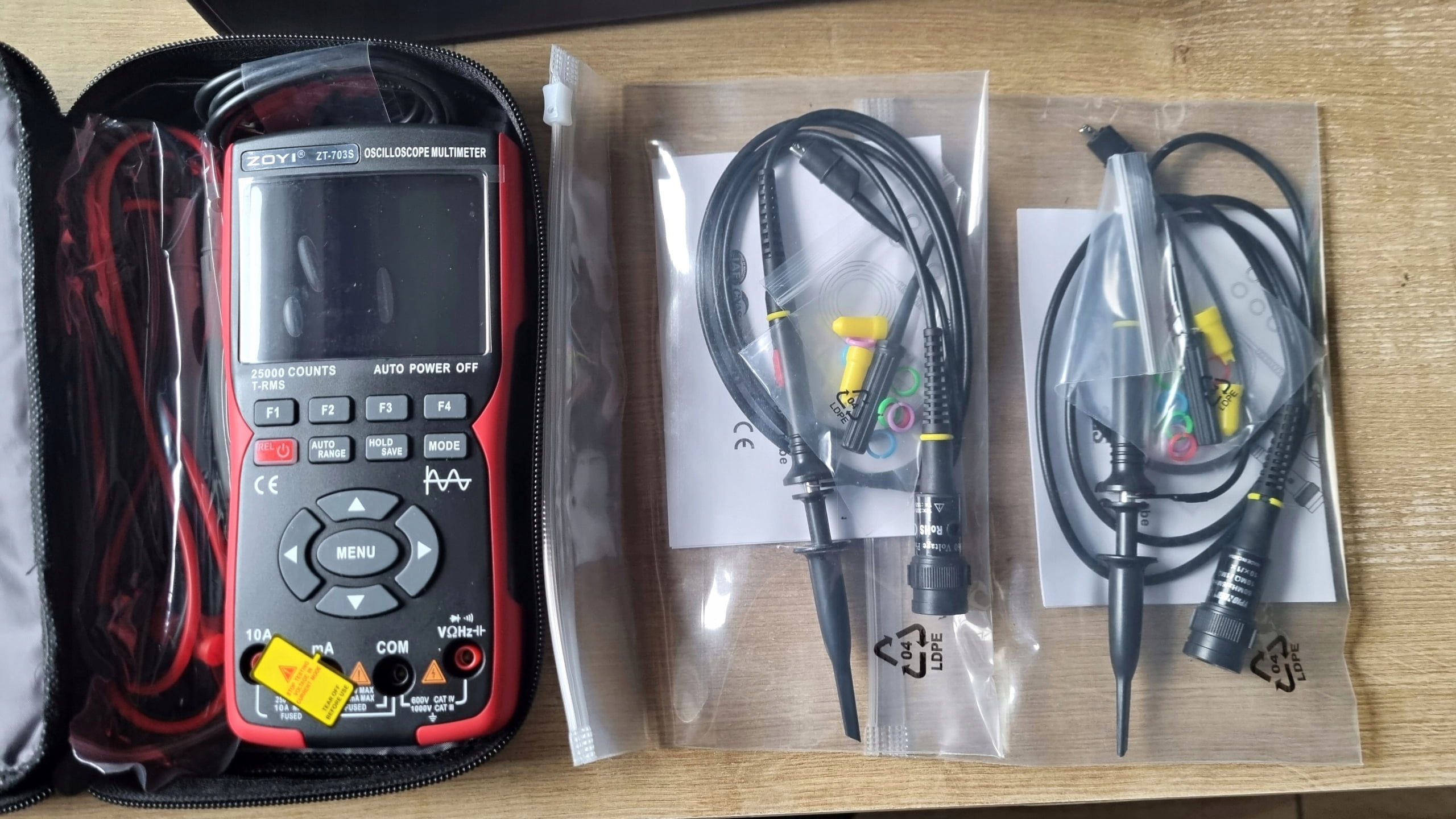

• This set includes:

  1. ZT-703S measuring device

  2. Measuring line group

  3.2x oscilloscope probe

  4. USB cable

  5. Cases

  ZOYI version with oscilloscope:

  ZT-701S: 1 channel, 24 MSps, 3 MHz, 64 Kpts, 2.8 inch screen, 6000 count multimeter

  ZT-702S: 1 channel, 48 MSps, 10 MHz, 64 Kpts, 2.8 inch screen, 9999 count multimeter

  ZT-703S: 2-channel, 250 MSps, 50 MHz, 512 Kpts, 3.5 inch screen, 25,000 count multimeter

• Information!

  Due to differences in the type, intensity, angle of light and display settings, the colors in the photo may differ from the actual colors.
